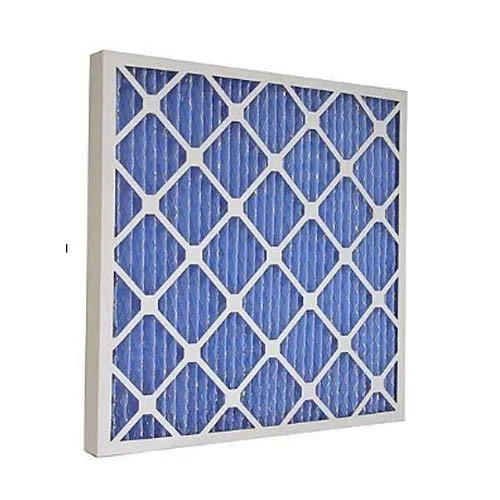

“PRISM”PANELFILTER(DISPOSABLE)

The PRISM Disposable Panel Filter is designed as a primary filter for air conditioning systems. It offers high airflow at low pressure drop with long durability, making it a low-energy, high-performance solution for HVAC applications.

Advantages:

• Water-resistant cardboard frame
• Conception with girders/crossbars
• Entirely disposable
• Low initial pressure drop
• Cost-effective

Description & Construction:

• Diagonal stiffeners bonded to media maintain fold spacing and protect the filter
• Media fully supported and bonded onto a wire support grid
• Rounded pleats for maximum dust retention and efficient airflow
• High-performance disposable pleated panel filter

Technical Specifications:

Filter Media & Efficiency:
• Media: Synthetic fiber
• EN 779:2002 Efficiency: G2 / G4
• EuroPrism Efficiency: EU2 / EU4
• Average Arrestance: 65–70%
• Rated Face Velocity: 2.5 m/s
• Maximum Temperature: 70°C (continuous service)
• Maximum Relative Humidity: 100% RH

Case & Construction:
• Rigid, water-resistant cardboard
• Diagonal stiffeners and wire support grid
• Rounded pleats for enhanced airflow

Pressure Drop:
• Final Pressure Drop: 150–250 Pa

Nominal & Actual Sizes with Airflow Ratings:

Other sizes available on request
