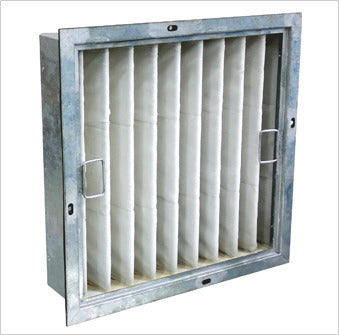

“PRISM”FINE FILTER/MICRO-V FILTER

“PRISM”FINE FILTER/MICRO-V FILTER

22 sold in last 24 hours

Rs. 0.00

The PRISM Rigid Cell Filter provides high-efficiency ASHRAE air filtration in a compact, self-supported pleated media design. It is ideal as a secondary filter for pharmaceutical, laboratory, and hospital areas, or as a pre-filter to HEPA filters. The full surface area of the filter media remains available even after prolonged use and heavy dust loading.

Key Features:

• Robust construction for long-lasting durability
• High dust holding capacity
• Excellent arrestance efficiency
• Suitable for commercial and industrial applications
• Self-supported pleated panel filter for easy installation
• Can be installed in front, rear, or side access systems

Technical Specifications:

Filter Media & Efficiency:
• Application: Secondary filter for air conditioning / cleanroom systems
• Media Type: Pleated synthetic fiber (mixture of cotton and synthetic fiber)
• Case: Galvanized steel / Aluminum / Stainless Steel channel
• EN 779:2002 Efficiency: F5 – F9
• EuroPrism Efficiency: EU5 – EU9
• Average Arrestance: 90–95%
• Rated Face Velocity: 2.5 m/s
• Maximum Temperature: 80°C (continuous service)
• Maximum Relative Humidity: 100% RH

Pressure Drop:
• Final Pressure Drop: 150–250 Pa

Sizes & Rated Airflow:

Nominal Size (W×H×D) Actual Size (W×H×D mm) Rated Airflow (CFM) Rated Initial Resistance (Pa)
24″×24″×6″ 610×610×150 1200 60–80
20″×20″×6″ 508×508×150 840 60–80
24″×12″×6″ 610×305×150 600 60–80
18″×18″×6″ 457×457×150 675 60–80
24″×24″×12″ 610×610×300 2000 60–80
20″×20″×12″ 508×508×300 1400 60–80
24″×12″×12″ 610×305×300 1000 60–80

Other sizes available on request
