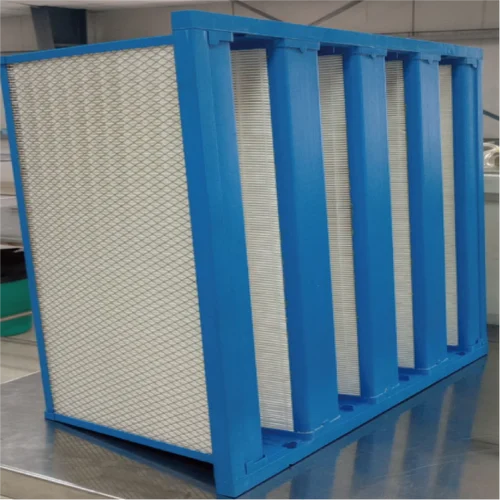

“PRISM” V-CELLFILTER

The PRISM V-Cell Filter is a high-efficiency, compact filter designed for air conditioning applications and pre-filtration in cleanrooms. It provides low energy consumption, high filtration efficiency, and reliable performance for sub-micron particle removal.

Advantages:

• Competitive, cost-effective 4V-bank design with pressure drop <100 Pa
• Efficiency guaranteed with no discharge effect, exceeding EN779:2011 performance requirements
• Small fiber diameter material in a rigid and safe frame, ensuring consistent high efficiency for sub-micron particles
• Reliable final-stage filter for non-residential buildings, compliant with EN13779

Key Features:

• Robust construction for durability
• Long operating life
• Very large surface area for optimal filtration
• Large surface area for high airflow capacity
• No metal parts, safe for sensitive applications
• Ideal for HVAC systems and gas turbines

Technical Specifications:

Filter Construction & Media:
• Application: Air conditioning and pre-filtration for cleanrooms
• Type: High-efficiency, incinerable filter
• Frame: ABS
• Media: Glass fiber paper
• Separator: Hot-melt beads
• Sealant: Polyurethane
• EN 779:2012 Filter Class: M6, F7, F8, F9
• ASHRAE 52.2:1999 Filter Class: MERV 11, MERV 13, MERV 14, MERV 15
• Recommended Final Pressure Drop: 500 Pa
• Maximum Temperature: 70°C (continuous service)

Rated Airflow & Efficiency:

Other sizes available on request
