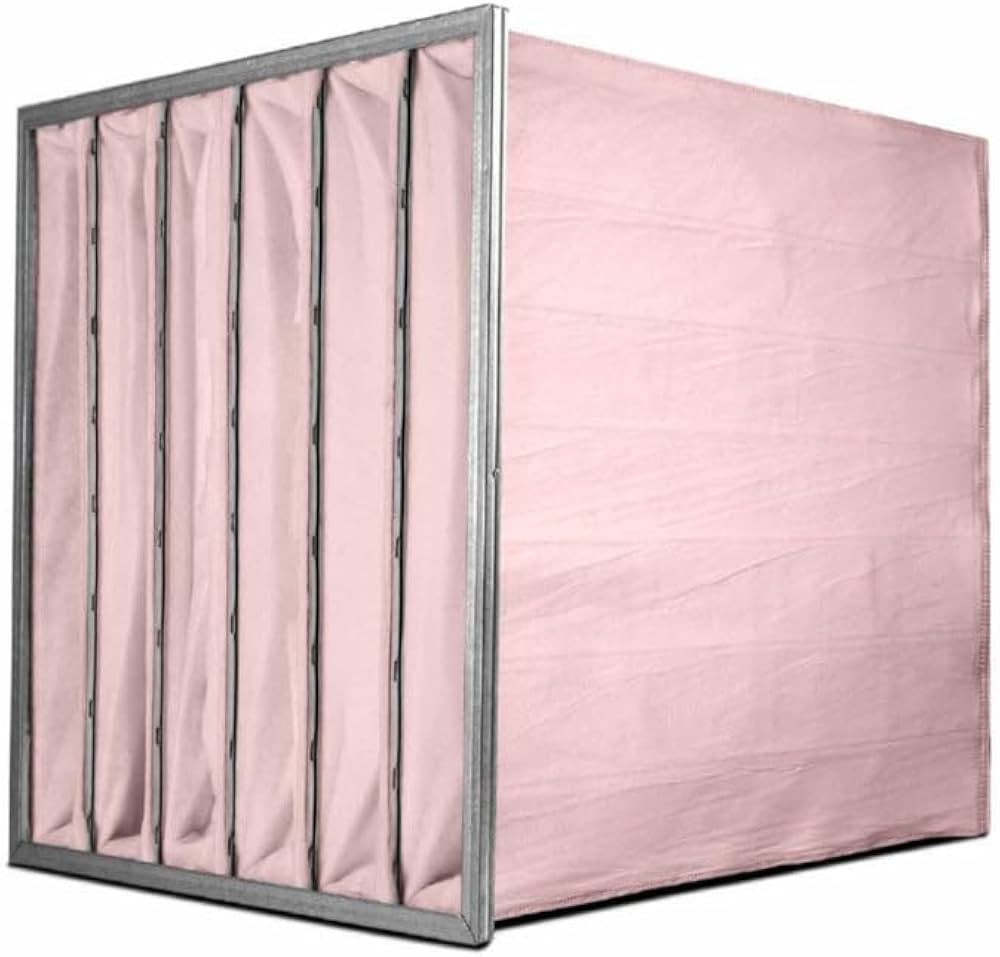

“PRISM”BAG FILTER(SYNTHETIC MEDIA)

“PRISM”BAG FILTER(SYNTHETIC MEDIA)

13 sold in last 24 hours

Rs. 0.00

The PRISM Bag Filter is designed for primary and secondary filtration in air conditioning systems. The pockets and bags are made from 100% synthetic fibers formed into a high-loft blanket, delivering low initial resistance and high dust holding capacity. Properly sealed pockets ensure inflation stability and elimination of air bypass.

Advantages:

• Excellent performance as a pre-filter for medium and high-efficiency filters
• Can be used as a stand-alone filter in commercial HVAC systems, unit ventilators, and fan coil units
• Synthetic fibers are moisture-resistant, ideal for high humidity or intermittent moisture conditions

Description & Construction:

• Application: Filtration for fine particles in AHU and Prismilation Systems
• Type: Pocket Filter
• Case: Galvanized Steel / ABS
• Media: Progressive structure synthetic fiber / Glass fiber
• EN 779:2002 Efficiency: F5 / F9
• EuroPrism Efficiency: EU5 / EU9
• Average Arrestance: 50–90%
• Final Pressure Drop: 250 Pa
• Maximum Temperature: 80°C (continuous service)
• Maximum Relative Humidity: 100% RH

Rated Face Velocity & Airflow Ratings:

Rated Face Velocity (m/s) Actual Size (mm W×H×D) No. of Pockets Rated Airflow Capacity (CFM) Gross Media Area (m²) Rated Initial Resistance (Pa)
3.2 592×592×700 8 2500 8.0 160
3.2 287×592×700 4 1250 3.6 160
2.5 592×592×635 8 2000 6.7 135
2.5 287×592×635 4 1000 3.3 135
1.25 592×592×500 8 1000 4.1 90
1.25 287×592×500 4 500 2.0 90

Other sizes available on request
