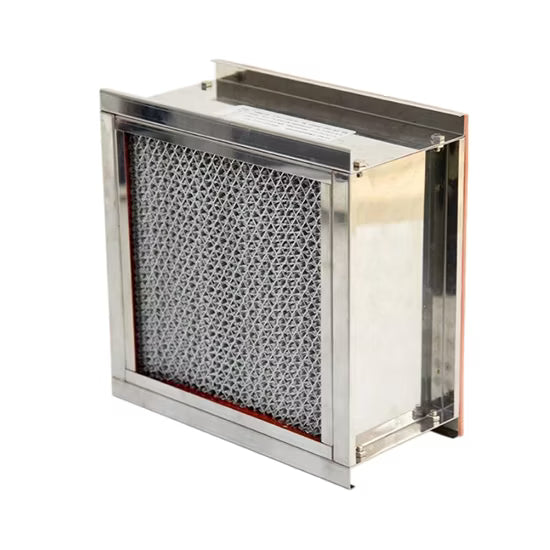

“PRISM” HEPA FILTER (FOIL SEPARATOR)

“PRISM” HEPA FILTER (FOIL SEPARATOR)

24 sold in last 24 hours

Rs. 0.00

The PRISM HEPA Filter is manufactured from continuous-length, superior quality micro glass fiber media available in multiple efficiency grades. The media is moisture-resistant, fire-retardant, and optionally anti-microbial treated for special applications. The uniform, closed-pleat design provides a high surface area for capturing very fine dust particles.

Key Features:

• Robust construction for durability
• Low initial pressure drop
• High dust holding capacity
• Wide range of standard sizes
• Individually leak-tested

Technical Specifications:

Filter Construction & Media:
• Application: Fine particulate filtration
• Type: Deep pleat HEPA filter
• Case: Galvanized steel / Aluminum / Stainless Steel
• Media: Micro-glass fiber
• Separator: Corrugated aluminum
• Sealant: Polyurethane
• Gasket: Neoprene rubber
• EN 1822 Efficiency: H12, H13, H14
• MPPS Efficiency: H12 >97.5%, H13 >99.95%, H14 >99.995%
• Recommended Final Pressure Drop: 500 Pa
• Maximum Temperature: 90°C
• Maximum Humidity: 100% RH

Nominal Sizes & Rated Airflow:

Nominal Size (inch W×H×D) Actual Size (mm W×H×D) Rated Airflow Capacity (CFM) Rated Initial Pressure Drop (Pa)
125 FPM (Medium) 250 FPM (High)
24×24×12 610×610×305 – 1000
20×20×12 508×508×305 – 692
24×12×12 610×305×305 – 500
12×12×12 305×305×305 – 250
24×24×6 610×610×150 500 1000
20×20×6 508×508×150 346 692
24×12×6 610×305×150 250 500
18×18×6 457×457×150 280 1125
12×12×6 305×305×150 125 250

Other sizes available on request
