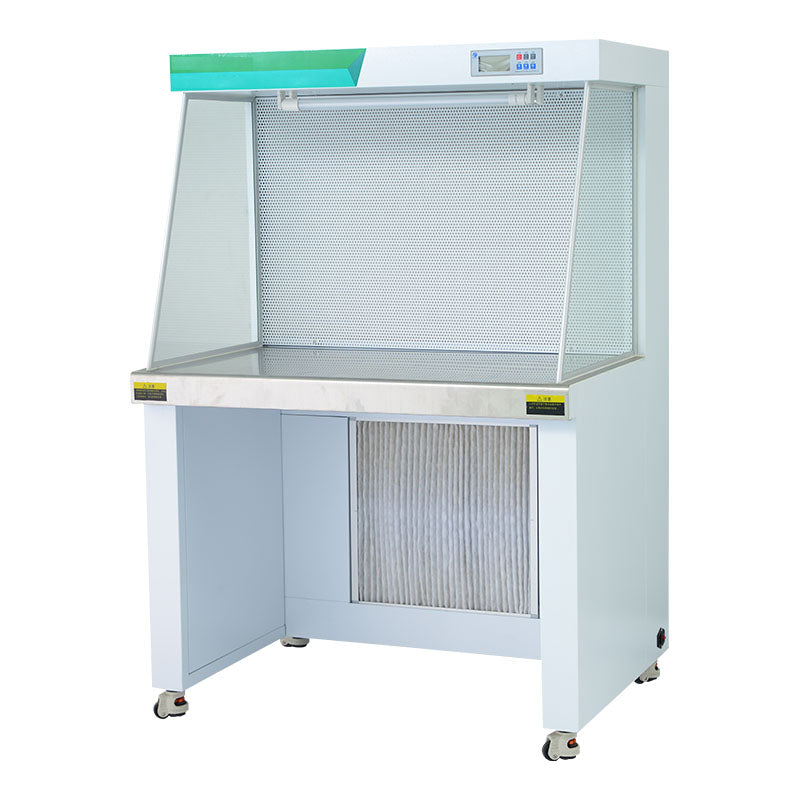

“PRISM”LAMINAR AIR FLOW BENCH(VERTICAL/HORIZONTAL)

A unique combination of aerodynamic design, operator comfort, versatility, and reliability. Delivered with a strong tabletop made of stainless steel or melamine as standard. Ensures maximum product protection while minimizing contamination risk.

Technical Specifications

Air Performance:
• Air Cleanliness: ISO Class 5 / Class 100 / M3.5 AREA
• Air Velocities: 0.45 ± 0.05 m/s (90 ± 20 FPM)
• Air Flow: Horizontal / Vertical

Noise & Vibration:
• Noise Level: < 67 dB
• Vibration Level: Minimum

Power Supply:
• 230 VAC, Single Phase (1-Ø), 50 Hz

Material of Construction (MOC):
• Main Body: Powder-coated / SS-304 / SS-316
• Side Panels: Glass / Polycarbonate / Acrylic

Filtration System:
• Two-stage filtration

• EU5 Intermediate Filter (95% down to 5 μm)

• EU14 HEPA Filter (Supply/Exhaust, 99.999% down to 0.3 μm)

Other Features:
• Statically & dynamically balanced motor-blower with isolator to reduce noise
• Fluorescent lights with milky white diffuser
• Differential pressure gauge: 1 No. (for HEPA Filter)
• ON/OFF switches (Blower / Fluorescent / UV)
• Auxiliary powder socket: 5/15 Amp for external equipment
• DOP port
• Documentation: DQ, IQ, OQ, PQ

Options & Accessories:
• Configurable front doors (Counterweighted / Hinged)
• Hour meter for UV light
• Air / Gas cock
• Velocity display with high/low alarms
• Filter choking alarms

Dimensions Table:

Note: Other capacities available on request.
