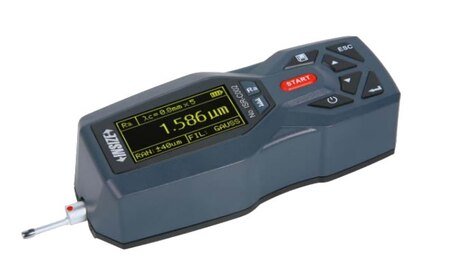

INSIZE- Roughess Tester (160?) (ISR-C002)

PARAMETERS: Ra, Rz, Rq, Rv, Rp, RS, R3z, R3y, Rt, Rz (JIS), Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr1, Mr2, Ry (JIS), Rmax

RANGE: 160µm

ACCURACY: ±10%

RESOLUTION: 0.001µm

PROBE:

TYPE: INDUCTIVE

STYLUS RADIUS/ANGLE: 5µm/90°

STYLUS MATERIAL: DIMOND

MEASURING FORCE: 4mN

MEASURING UNIT: µm/µin

CUT OFF: 0.25/0.8/2.5mm

NUMBER OF CUT-OFFS: 1 TO 5

TRAVERSE SPEED: 0.5mm/S, 1mm/S

MEMORY: 100 MEASUREMENTS RESULTS

OUTPUT: USB AND BLUETOOTH

POWER: BUILT-IN RECHARGEBLE BATTERY

DIMENSION (LxWxH): 141x55x40mm

WEIGHT: 400g

STANDARD DELIVERY:

MAIN UNIT: 1PC

STANDARD PROBE: 1PC

CALIBRATION BLOCK NAD SUPPORT: 1PC OF EACH

ADJUSTABLE STAND: 1PC

PROBE COVER: 1PC

USB CABLE AND SOFTWARE FOR PC: 1PC

AC/DC ADAPTER: 1PC

OPTIONAL ACCESSARY:

EXTENSION ROD: ISR-C002-ER

TRANSVERSE ROD: ISR-C002-TR

DEEP GROOVE PROBE: ISR-C002-DGP

SMALL HOLE PROBE: ISR-C002-SBP

LIGHT DUTY TEST STAND: ISR-C002-STAND1

HEAVY DUTY TEST STAND: ISR-C002-STAND

WIRELESS PRINTER: ISR-C002-PRINTER
