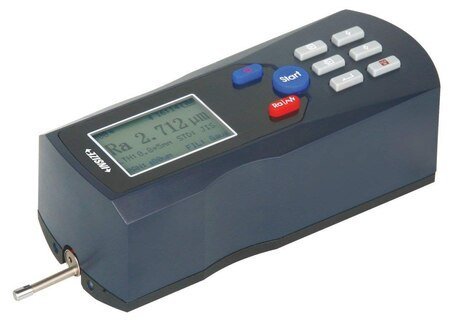

INSIZE- Roughness Tester (ISR-C100) + FREE CALIBRATION CERTIFICATE

The INSIZE ISR‑C100 Roughness Tester is a portable surface roughness measurement instrument designed for precision checking of surface texture on machined parts. It measures roughness parameters digitally and is suitable for workshop, quality inspection, and production control tasks, with data memory and output options.

KEY FEATURES:
• Measures 13 roughness parameters such as Ra, Rz, Rq, Rp, Rm, Rt, Rmax, R3z, Sk, S, Sm, tp, and RPC
• Measuring range: up to 160 µm
• Resolution (Ra): 0.001 µm
• Accuracy: approximately ±10%
• Inductive probe with diamond stylus (5 µm radius / 90°)
• Memory: stores up to 100 measurement results
• Cut‑off lengths: 0.25 mm, 0.8 mm, 2.5 mm (1–5 selectable)
• Traverse speed: 0.5 mm/s or 1 mm/s
• Power: built‑in rechargeable battery
• Output: USB (data transfer)
• Includes probe cover, adjustable stand, calibration block, USB cable and software

APPLICATIONS:
• Surface roughness measurement of machined components
• Quality control and inspection in manufacturing
• Checking surface finish parameters for engineering and fabrication tasks
• Suitable for metals, plastics, and precision surfaces
• Workshop and field surface texture evaluation
