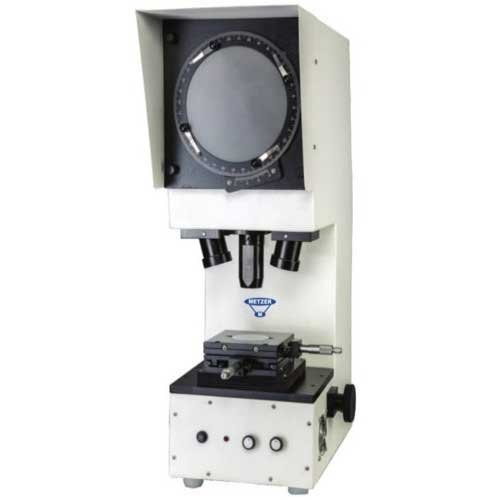

METZER - M PROFILE PROJECTOR VISION PLUS METZ – 400 T.T. (SUPREME) WITH DRO

SPECIFICATIONS –
Screen Diameter 400mm. fine ground screen with cross line.
Magnification 10x
Magnification Accuracy ± 0.1% for contour and ± 0.15% for surface.
Work Stage (Threadless) Table 300x200mm, X & Y axis. Traverse 150mm x 100mm.
Contour Illumination 24V – 250W Halogen Lamp. Telecentric system and sharp twin lens
condenser for each magnification brightness adjustment.
Focusing Mechanism Manual.
Surface Illumination 12V – 50W Halogen lamp With Reflector.
Cooling System Built in noiseless and vibration free blower for powerful cooling system.
Power Supply 230V Single Phase AC.
Digital Readout System
With 2nos. Linear Glass Scale Res. 1 Micron With 3 -Axis Display Unit &
Digital Encoder For Angular Measurement.
With Radius Interface.
