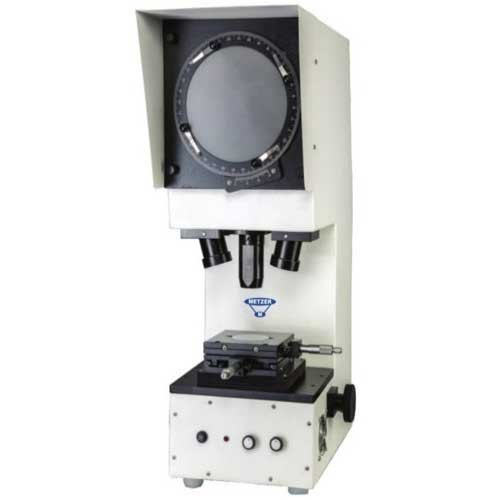

METZER - PROFILE PROJECTOR VISION PLUS (METZ – 200 T.T) WITH DIGITAL MICROMETER HEADS

SPECIFICATIONS –
Screen Diameter 200mm. fine ground screen with cross line.
Rotatable 0 to 360˚ vernier reading 2 minutes.
Magnification 10x.
Magnification Accuracy ± 0.1% for contour and ± 0.15% for surface.
Work Stage Table 150x150mm. X & Y axis, Traverse 25mm in each direction having
least count 0.001mm (Digital Micrometer Heads).
Contour Illumination 24V – 100W Halogen Lamp. Telecentric system and sharp twin lens
condenser for each magnification brightness adjustment.
Surface Illumination 12V – 50W Halogen lamp with reflector.
Cooling System Built in noiseless and vibration free blower for powerful cooling system.
Power Supply 220 / 240V AC., 50 / 60Hz, Fuse 5A.
