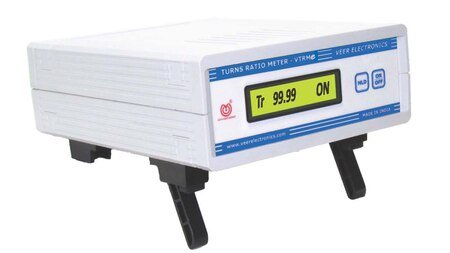

Maxima-Automatic Transformer Turns Ratio Meter (VTRME)

Maxima-Automatic Transformer Turns Ratio Meter (VTRME)

12 sold in last 24 hours

Rs. 0.00

:T/E/TRM/MAX/XXX/004

  • Fully Automatic measurement of Transformer Turn Ratio
  •  0.2% Accurate measurement
  • Single Phase Connections Enables Simpler And Faster testing
  • 16*1 LCD to see Measured Parameter
  • Switch for testing ON & OFF
  •  Hold Switch Too Freeze Result
  • Reverse Polarity Indication Sign in LCD
  • Inbuilt Over Current Protection for short winding
  • Portable in Size





Parameters Turns ratio & Reverse Polarity
Ratio Range & Resolution 1:100/1:200, Resolution- 4 Digits
Excitation Voltage 55 Volt @50Hz (DEpends on Auxiliary Supply),(Other Range Available on Request)
Excitation Current Capability 200 mA
Power Supply AC 230V ± 10% @ 50 Hz OR AC 110V ± 10% @ 60 Hz (On Request)
Accuracy ± 0.2% rdg ± 0.1%rng
Size of Instrument ( WxDxH) in mm 158mm x 198mm x 72mm (Over all)
Weight of Instrument 2.00 kg Approx.
Warranty 1 Year against manufacturing defects & Extended optional. No Warranty for accessories.

  • Distribution Transformers, Power Transformers, CT PT & other Transformer Manufacturers & Repairers
  • Electricity Distribution & Transmission Companies to Enhance Their Inhouse Testing.
  • Engineering Colleges to Aware Students about Turn Ratio & it's Measuring Principles.
  • Research Institutes for Research Work on Transformer Fundamentals.
  • Electrical Test & Calibration Laboratories.
