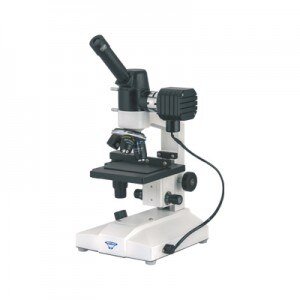

METZER - MONOCULAR METALLURGICAL MICROSCOPE (METZ-56)

PRODUCT CODE : T/L/MMM/MET/400/001

* Magnification 40x – 400x
* Observation Monocular inclined 45˚ and rotatable 360˚.
* Stand A rigid & heavy stand.
* Focusing Separate knobs for coarse & fine motion having least count of 0.002 mm.
* Stage Fixed square stage size 120 x 140 mm. with co-axial X & Y movements .
* Illumination Incident br ight light through Epi –illuminator 6V – 20W Halogen lamp with Iris diaphragm and    filter slot. Continuously variable luminosity.

* Nose Piece Quadruple revolving Nose piece with positive click stops.
* Objectives Achromatic – M4x, M10x & M40x (SL).
* Eye PiecesWide field 10x.
