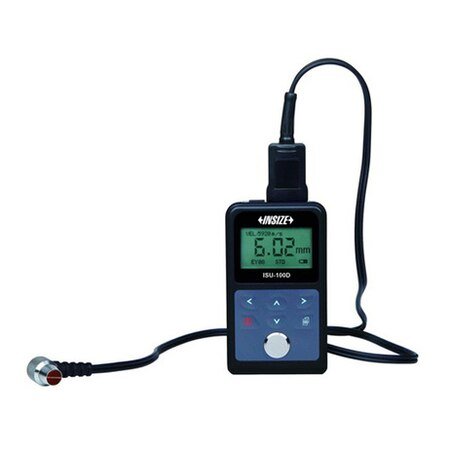

INSIZE -Ultrasonic Thickness Guage (0.8 - 300mm)(ISU-100D)+ Free Calibration Certificate

A portable ultrasonic thickness gauge from INSIZE with a 0.8–300 mm measuring range. It uses ultrasonic pulse reflection to measure material thickness from one side, making it suitable for inspecting wall thickness on pipes, tanks, and other objects. The device is ideal for corrosion monitoring and general thickness checks in workshops and industrial settings.

KEY FEATURES:
• Measuring range: 0.8 – 300 mm
• Resolution: 0.01 mm (<100 mm), 0.1 mm (≥100 mm)
• Accuracy: ±0.04 mm (<10 mm), ±(0.04 + H/1000) mm (10–100 mm), ±H/333 mm (>100 mm) (H = thickness measured)
• Transducer frequency: 5 MHz
• Transducer diameter: 10.8 mm
• Minimum pipe size for measurement: 20 mm diameter × 1.2 mm wall thickness
• Applicable materials: Metal, plastic, glass, nylon, resin, ceramic, ice
• Power: 2 × AAA batteries
• Weight ~200 g, compact handheld design
• Includes transducer and couplant for ultrasonic measurement

APPLICATIONS:
• Thickness measurement of pipes and tanks in workshops and field use
• Corrosion monitoring and wall loss detection in metallic structures
• Checking thickness of plastics, glass, ceramics and other materials
• Non‑destructive testing (NDT) inspection in maintenance and quality control
• Use in fabrication, engineering, and industrial material verification tasks
