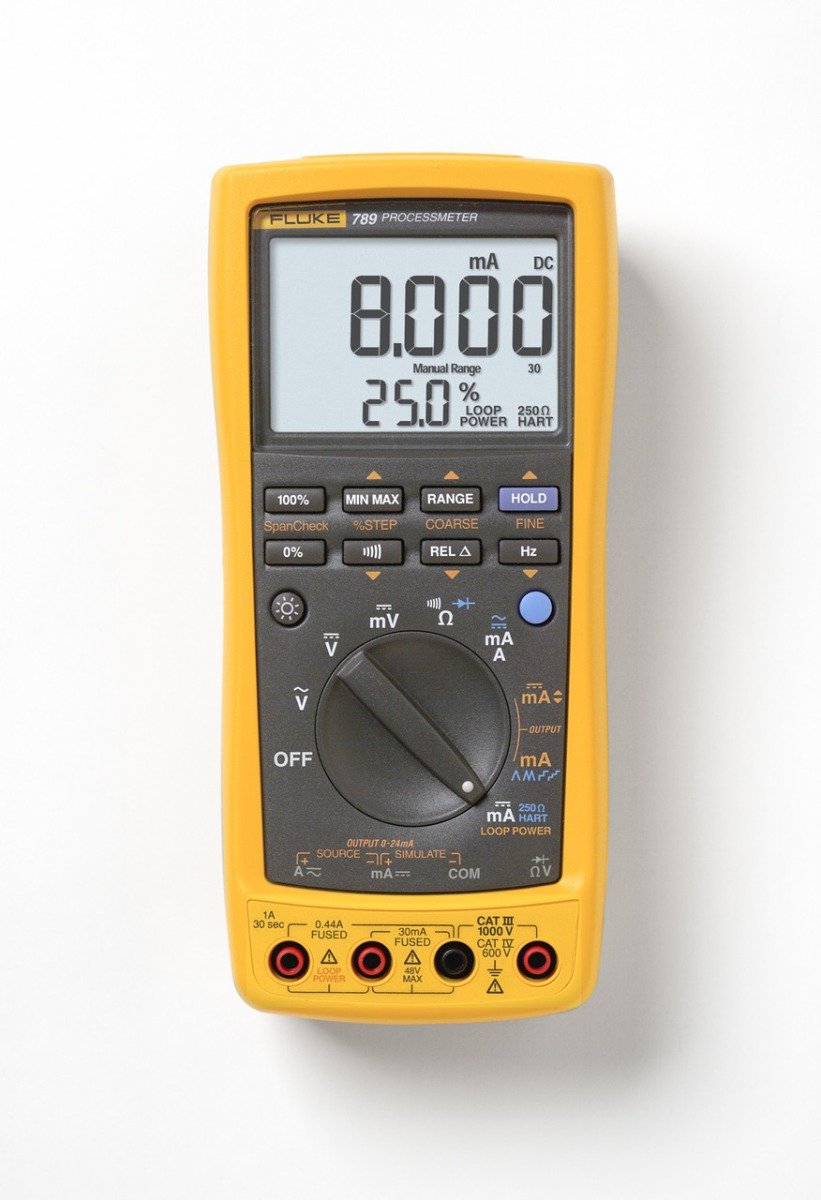

Fluke - Process Meter (789)(1000 V AC/DC)

Fluke - Process Meter (789)(1000 V AC/DC)

12 sold in last 24 hours

Rs. 222,966.00
Current measurement Range 0-1 A AC or DC
Resolution 1 mA
Accuracy 0.2% + 2 LSD (DC)
Range 0-30 mA
Resolution 0.001 mA
Accuracy 0.05% + 2 lSD
Current sourcing Range 0-20 mA or 4-20 mA
Resolution 0.05% of span
Drive capability 24 V Compliance or 1200 Ω @ 20 mA
Frequency to 19.999 kHz, 0.005% + 1 LSD
Continuity Beeps for resistance < 100 Ω
Voltage measurement Range 0-1000 V AC (true-rms) or DC
Resolution 0.1 mV to 1.0 V
Accuracy 0.1% Rdg + 1 LSD (VDC)
Resistance measurement to 40 MΩ, 0.2% + 1 LSD
Diode test 2.0 V shoes diode voltage drop
Display current and % of span Yes
Auto Step, Auto Ramp Yes
Environmental Specifications
Operating temperature -20°C to 55°C
Storage temperature -40°C to 60°C
Humidity (without condensation) 95% up to 30°C
75% up to 40°C
45% up to 50°C
35% up to 55°C
Temperature coefficient 0.05 x (specified accuracy) per °C (for temperatures < 18°C or > 28°C)
Safety Specifications
Electrical safety Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No 1010.1-92
Overvoltage category IEC 1010-1 CAT III 1000 V
IEC 1010-1 CAT IV 600 V
Maximum voltage 1000 V RMS
Mechanical and General Specifications
Size (H x W x L) 50 x 100 x 203 mm (1.25 x 3.41 x 7.35 in)
Weight 610 g (1.6 lbs)
Batteries 4 AA alkaline batteries
Warranty 3 years
Battery life 140 hours typical (measurement), 10 hours typical (sourcing 20 mA)
Shock and vibration

Random, 2 g, 5-500 Hz
1 meter drop test



Key features

  • Ultimate troubleshooting tool for electricians and instrumentation professionals
  • Combines the functionality of a loop calibrator with the power of a precision 1000 V, 440 mA True-RMS digital multimeter
  • Optional IR3000FC module for wireless data logging capabilities via Fluke Connect® mobile App
  • Includes 24 V loop power supply
  • Features a very large dual display with enhanced two-level backlight brightness settings

Other useful features:

  • Includes 0% and 100% buttons to toggle between 4 and 20 mA sourcing for a quick span check
  • Provides all standard DMM capabilities including frequency measurement to 20 kHz, Min/Max/Average/Hold/Relative modes, and diode test and continuity beeper
  • Simultaneous displays mA and % of scale readings
  • Provides 20 mA DC current source/loop calibrator/simulator
  • Offers manual step (100%, 25%, Coarse, Fine) plus auto step and auto ramp
  • Delivers 0.1% dc voltage accuracy and 0.05% dc current accuracy
  • Provides 1200 ohm drive capability on mA source
  • Offers HART mode setting with loop power and a built-in 250 ohm resistor
  • Offers externally accessible fuses and batteries for easy replacement
