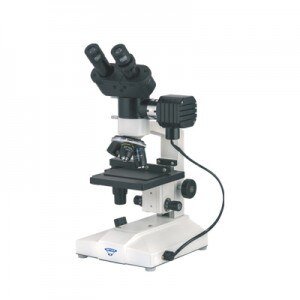

METZER - BINOCULAR METALLURGICAL MICROSCOPE

PRODUCT CODE : T/PRD/BMM/MET/001

* Magnification 40x – 400x
* Observation Binocular inclined 45˚ and rotatable 360˚
* Stand A rigid & heavy stand.
* Focusing Separate knobs for coarse & fine motion having least count of 0.002 mm.
* StageFixed square stage size 120 x 140 mm. with co-axial X & Y movements.
* Illumination Incident bright light through Epi – illuminator
 6V – 20W Halogen lamp with Iris diaphragm and filter slot. Continuously variable luminosity.
* Nose Piece Quadruple revolving Nose piece with positive click stops
* Objectives Achromatic – M4x, M10x & M40x (SL).
* Eye PiecesWide field 10x.
