SPECIAL FEATURES:
* I-V Curve Test for Solar Panel/Module/Cell
* Max. Voltage (Vmaxp) at Pmax
* Max. Current (Imaxp) at Pmax
* Voltage at Open Circuit (Vopen)
* Current at Short Circuit (Ishort)
* I-V Curve with Cursor to Display each Data Point
* Efficiency (%) Calculation of Solar Panel
* Solar Panel Area Setting: 0.001 m ~ 9999 m 2 2
* Standard Light Source Setting: 10 W/m ~ 1000 W/m 2 2
* Communicate with PC via USB Cable
* AC Adaptor and Rechargeable Lithium Battery
* Memory Size: 100 Records
* Sampling Time of Data Logging: 0 ~ 99 min.
* Large LCD with Baclight
Accessories:
User Manual x 1, AC Adaptor x 1,
Optical USB Cable x 1,
Rechargeable Lithium Battery (installed) x 1,
Software CD x 1, Software Manual x 1,
Kelvin Clips (12A max) x 1 Set,
4 Wire to 2 Wire Connector (10A Max and
12A for 1minute) x 1 set,
Carrying Bag x 1

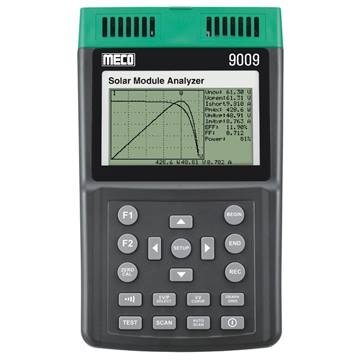

| Brand | MECO |
| Model | 9009 |
| DC Voltage Measurement | 0 - 60V |
| DC Current Measurement | 0.01 - 12A |
| Resolution | 1mV , 1mA |
| AC Adapter | AC 110V or 220V input, DC 15V / 3A output |
| Environment |
5ºC ~ 50ºC, ≤ 85% RH (Operating) -20ºC ~ 60ºC, ≤ 75% RH (Storage) |
| Battery Type | Rechargeable Lithium Battery, 3400mAh |
| Data Logging Memory Size | 100 records |
| Standards |
EN 61326 - 1:2006 |
| Dimension | 257 x 155 x 57mm |
| Weight | 1160gms |
