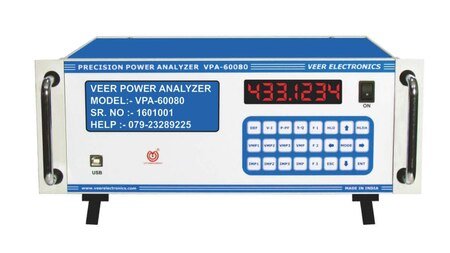

Maxima-3 Phase Precision Power Analyzer (vpa-60080)

Maxima-3 Phase Precision Power Analyzer (vpa-60080)

11 sold in last 24 hours

Rs. 0.00

: T/E/DOA/MAX/XXX/001

  • TRMS Voltage 600V /1200V Phase,1050V / 2100V Line
  • TRMS Current 80A / 160A Direct
  • Torque, RPM, %Slip, Eff. Measurement (Motor Version)
  • Flow, Head, RPM, %Slip Measurement (Pump Version)
  • 500 Test Data Storage Inbuilt
  • USB , RS-232 / RS-485 interface & Free Software
  • 20 X 4 LCD Display & Ultra Glow Red LED Display
  • High Speed Measurement in 0.25Sec (Optional)
  • Tamper Proof Calibration & Long term stability
  • Double Fuse Protection
  • Inbuilt Surge Protection in Voltage Input
  • Auto Over Voltage Shutdown Facility
  • Portable in size
  • 2 in 1 Rack Mountable & Table Top Model
  • User Friendly Operation with embossed Key Pad

       SCOPE OF MEASUREMENT

  • TRMS, Mean, Rectified and Peak, Crest Factor, Form Factor of Voltage and Current.
  • Active Power(P), Apparent Power(S) and Reactive Power (Q), Power Factor, Frequency accurately.
  • Torque, RPM, %Slip, Efficiency of Motor (Motor Version) & Flow, Pressure, %Slip, RPM of Pump (Pump Version)
  • Flow, Pressure, Suction, %Slip, RPM of Pump(Pump Version)


       GENERAL SPECIFICATION



GENERAL SPECIFICATIONS
Warm up time 30 minutes
Operating temperature 5°C to 50°C
Operating humidity 20% to 80% RH (no condensation)
Storage temperature 0°C to 55°C
Power supply 160V - 290V @ 50Hz / 100V - 140V @ 60 Hz
Power consumption 30VA Max.
Dimension 376 x 320 x 145 mm (W x D x H)**
Panel cut out size 332 x 133 mm without Feet**
Weight 5.5 kg approximately**
Input Terminal Type Voltage : Banana socket (wire fit type)
Current : large binding Post (1/ 4" or 6/16" copper stud with insulated nut)






MEASUREMENT FUNCTIONS
Parameter Voltage / Current / Active power
Accuracy
( within 1 year after Calibration*)
Conditions: -
Temperature : 25°C±5°C
Humidity : 30 - 75% RH
Input waveform : Sine wave
Power factor : 1.0
Display digits : 5 / 6 digits
Sample AVG : 8 Sample
* For normal testing & input
conditions
Frequency Range Accuracy
30 Hz to 44 Hz ±(0.2% of reading + 0.2% of range)
45 Hz to 65 Hz ±(0.1% of reading + 0.1% of range)
66 Hz to 800 Hz ±(0.2% of reading + 0.2% of range)
Peak / Mean= Above X 2
Additional PF effect on active power measurement At 50Hz 0.035" or Time delay errors 2.5 µS
Effective Input range 10-100% of Voltage, 1-100% current range rating
Display updating value 0.25 to 10 seconds selected By Models.
Frequency Measurement For >=Input > 3% of V1 from 30 to 800Hz
Accuracy ±0.05%
Frequency Between V1 Input & Neutral Terminal



   APPLICATION

  • To Perform No Load & Load Test of 1-Phase & 3-Phase of Distribution, Power, Control, Isolation & other transformers.
  • To Perform No Load, Block Rotor, Load & Efficiency Test of Motors & Pumps.
  • To Test LED Light, Stabilizer, Air conditioner, Fan, Heater, Ballast, Cooler, Washing Machine etc domestic appliances.
  • To calibrate Voltmeter, Amp meter, Watt meter, PF meter, Power source etc.
  • To carry out R & D activities of Power and testing of electrical appliances
  • Educational institutes, Degree / Diploma / ITI college in Electrical & Electronics department for Experiment & analysis.
  • To monitor power condition at renewable energy generation, Mega Mall, manufacturing plant, Mobile Base station etc.
