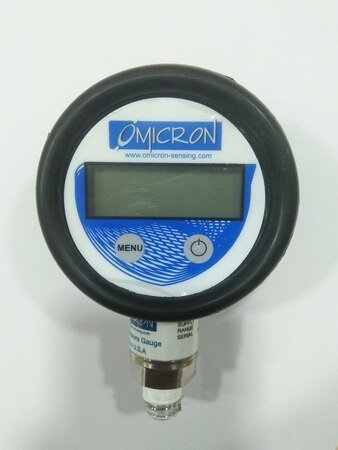

OMICRON - Digital Pressure Gauge (AS-313) (-1 TO 25 BAR)+ Free Calibration Certificate

OMICRON - Digital Pressure Gauge (AS-313) (-1 TO 25 BAR)+ Free Calibration Certificate

22 sold in last 24 hours

Rs. 12,500.00 (Incl. GST)
Rs. 10,593.22 (Excl. GST)
Rs. 14,000.00

Discount: Rs. 1,500.00 (11%)

Brand OMICRON
Model AS-313
Case Size 2.5” (63mm)
Case Material ABS (IP64)
Rubber Boot  Silicone rubber (IP65)
LCD Display 2” x 3/4” (48mm x 16mm)
Connection 1/4” NPT 304SS
Sensor 316L welded, Piezo
Operating Life 1 million cycles
Power Supply  2 x AAA battery (1.5V)
Power Mode Auto or manual shut-off
Display Digits



4 digits to 5,000 psi
5 digits for 10,000 psi and 15,000 psi
Resolution  1 digit
Pressure Unit Selection



psi, mHO, mmHg, mbar, kPa ranges ≤100 psi

psi, bar, kg/cm, MPa, atm ranges ≥ 160 psi
Operation Mode



Continuous process pressure reading or peak pressure reading
Response Time 3 Hz display refresh rate
Proof / Burst Pressure 200% / 300% FS
Operating / Storage 14°F to 122°F (-10°C to 50°C)
Temperature -4°F to 167°F (-20°C to 75°C)
Accuracy ±1%

Special Features:

  1. Simple 2 button operation
  2. Reset to zero feature
  3. Backlight turns on when on/off button is pressed
  4. Option for display to remain continuously on
  5. Peak pressure indication option
  6. 316L welded diaphragm seal
  7. Rubber boot is standard
  8. ASME B40.100 compliant
  9. ±1% accuracy (±0.5% optional for gauges up to 5,000 psi)
  10. 1 year warranty

Application:

  * Ideal for commercial and industrial application in both test measurement and generalpurpose installations.
