METRAVI - Spectrum Analyzer (AT-5010)

Name: METRAVI - Spectrum Analyzer (AT-5010)
Brand: METRAVI
SKU: T/E/SPA/MET/10M/001
Price: 80100.0 INR
Availability: InStock

8 sold in last 24 hours

Rs. 80,100.00 (Incl. GST)
Rs. 67,881.35 (Excl. GST)
Rs. 89,000.00

Discount: Rs. 8,900.00 (10%)

Hurry Up! Only 10 Left in Stock!

Availability: In Stock Unavailable

SKU: T/E/SPA/MET/10M/001

Categories:

Function Generator And Power Supply

Tags:

Function Generator And Power Supply

Sold Out

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: 10

Maxima- Dual dc regulated power supply (0TO30V) (ZM2PS) (T/E/DRP/MAX/030/001) Rs. 0.00

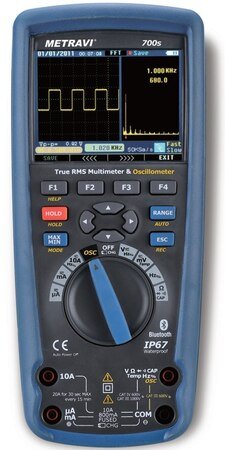

METRAVI - Multimeter with built-in Oscillometer (700S) Rs. 52,200.00

Description
Additional Information
Reviews

Description

Additional Information

Frequency range : 0.15— 1050 MHz
Center frequency display accuracy : ±100kHz
Marker accuracy : (0.1% span +100kHz)
Resolution of frequency display : 100kHz(4.5 digit LED)
Frequency scanwidth : 100 kHz/div. to 100MHz/div. in 1-2-5 steps and 0Hz/div.(Zero Scan)
Frequency scanwidth accuracy : ±10%
Frequency stability : better than 150 kHz/ hour
IF Bandwidth (-3dB) :
Resolution : 400 kHz and 20 kHz;
Video-Filter on : 4 kHz
Sweep rate : 43Hz
Amplitude range : -100dBm to +13 dBm
Screen display range : 80 dB (10dB/div.)
Reference level : -27dBm to +13 dBm (in 10dB steps)
Reference level accuracy : ±2dB
Average noise level : -99dBm (20 kHz BW)
Distortion : < -75 dBc: 2nd and 3rd harmonic
3rd order intermod. : -70dBc (two signals > 3MHz apart)
Sensitivity :
Log scale fidelity : ±2dB (without attn.) Ref.: 250MHz
Input impedance : 50Ohms
Input connector : BNC
Input attenuator : 0 to 40 dB (4Å~10dB steps)
Input attenuator accuracy : 1dB/10 step
Max. input level : +10dBm, ±25V DC (0dB attenuation) / +20dBm, (40dB attenuation)
