METRAVI- Spectrum Analyzer (AT-5011)

Name: METRAVI- Spectrum Analyzer (AT-5011)
Brand: METRAVI
SKU: T/E/SAG/MET/01M/001
Price: 125100.0 INR
Availability: InStock

9 sold in last 24 hours

Rs. 125,100.00 (Incl. GST)
Rs. 106,016.94 (Excl. GST)
Rs. 139,000.00

Discount: Rs. 13,900.00 (10%)

Hurry Up! Only 10 Left in Stock!

Availability: In Stock Unavailable

SKU: T/E/SAG/MET/01M/001

Categories:

Function Generator And Power Supply

Tags:

Function Generator And Power Supply

Sold Out

Add wishlist Delete wishlist Add compare Delete compare

Estimated Delivery: 10

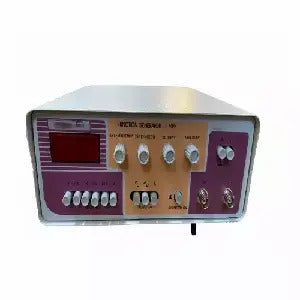

G-tech - DIGITAL FUNCTION GENERATOR (1601:01) Rs. 5,580.00

Maxima- Dual dc regulated power supply (0TO30V) (ZM2PS) (T/E/DRP/MAX/030/001) Rs. 0.00

Description
Additional Information
Reviews

Description

Additional Information

Frequency range: 0.15— 1050 MHz
Center frequency display accuracy: ±100kHz
Marker accuracy: (0.1% span +100kHz)
Resolution of frequency display: 100kHz（4.5 digit LED）
Frequency scan width: 100 kHz/div. to 100MHz/div. in 1-2-5 steps and 0Hz/div.(Zero Scan)
Frequency scan width accuracy: ±10%
Frequency stability: better than 150 kHz/ hour
IF Bandwidth (-3dB):
Resolution: 400 kHz and 20 kHz;
Video-Filter on: 4 kHz
Sweep rate: 43Hz
Amplitude range: -100dBm to +13 dBm
Screen display range: 80 dB (10dB/div.)
Reference level:-27dBm to +13 dBm (in 10dB steps)
Reference level accuracy: ±2dB
Average noise level: -99dBm (20 kHz BW)
Distortion: < -75 dBc: 2nd and 3rd harmonic / 3rd order intermod.:-70dBc / (two signals > 3MHz apart)
Sensitivity:
Log scale fidelity: ±2dB (without attn.) Ref.: 250MHz
Input impedance: 50 Ohms
Input connector: BNC
Input attenuator: 0 to 40 dB (4x10dB steps)
Input attenuator accuracy: 1dB/10 step
Max. input level: +10dBm, ±25V DC (0dB attenuation) / +20dBm, (40dB attenuation)
Tracking Generator: Frequency range: 0.15 MHz to 1050 MHz
Output level range: -50dBm to +1dBm (in 10dB steps and var.)
Output attenuator: 0 to 40dB (4Å~10dB steps)
Output attenuator accuracy: ±1dB
Output impedance: 50> (BNC)
Frequency response: ±1.5dB
Radio Frequency Interference(RFI): <20dBc
