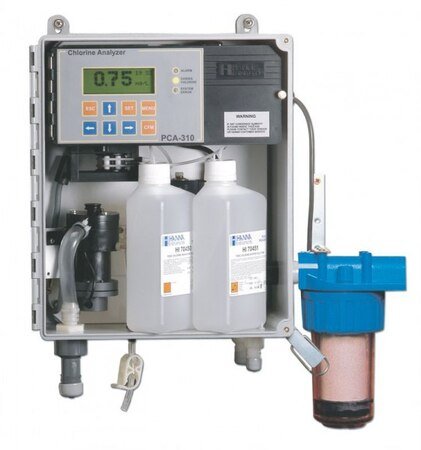

HANNA - Chlorine Analyzer (PCA310) + Free Calibration Certificate

21 sold in last 24 hours

Rs. 0.00

Brand	HANNA
Model	PCA310
Range (Free & Total cl2)	0.00 to 5.00 mg/L (ppm)
Resolution (Free & Total cl2)	0.01 mg/L (ppm)
Accuracy (Free & Total cl2)	± 8% or ±0.05 mg/L whichever is greater
Min. Detectable Level	0.05 mg/L (ppm)
Input Impedance	1012 Ohm
Calibration	one point
Sampling Rate	adjustable from 3 to 90 minutes
Dosage	proportional
Delta	selectable from 0.1 to 5 mg/L (ppm)
Recorder Output	4-20mA, 0-20mA
PC Connectivity	RS485 port, galvanically isolated
Baud Rate	1200, 2400, 4800, 9600 bps
Data Logging	up to 3500 data points
Alarm Relay	SPDT contact with 5A, 230V resistive load
Dosing Relay	SPDT contact with 5A, 230V resistive load
System Error	SPDT contact with 5A, 230V resistive load
Inlet Pressure	0.07 to 4 bar with no external pressure regulator (for pressure exceeding four bar an external pressure regulator is required)
Sample Flow	100 to 300 mL/min
Sample Temperature	5 to 40°C (41 to 104°F)
Sample Inlet/Outlet Connection	12mm (1/2") male NPT fitting
Drain Connection	10mm (3/8") barb
Power Supply	115 VAC ±10% or 230 VAC ±10%; 50/60 Hz; 20 VA

Hurry Up! Only 10 Left in Stock!

Availability: In Stock Unavailable

SKU: T/E/CLA/HNN/005/001

Categories:

Tags:

Ask for price

Estimated Delivery: 10

Brand	HANNA
Model	PCA310
Range (Free & Total cl2)	0.00 to 5.00 mg/L (ppm)
Resolution (Free & Total cl2)	0.01 mg/L (ppm)
Accuracy (Free & Total cl2)	± 8% or ±0.05 mg/L whichever is greater
Min. Detectable Level	0.05 mg/L (ppm)
Input Impedance	1012 Ohm
Calibration	one point
Sampling Rate	adjustable from 3 to 90 minutes
Dosage	proportional
Delta	selectable from 0.1 to 5 mg/L (ppm)
Recorder Output	4-20mA, 0-20mA
PC Connectivity	RS485 port, galvanically isolated
Baud Rate	1200, 2400, 4800, 9600 bps
Data Logging	up to 3500 data points
Alarm Relay	SPDT contact with 5A, 230V resistive load
Dosing Relay	SPDT contact with 5A, 230V resistive load
System Error	SPDT contact with 5A, 230V resistive load
Inlet Pressure	0.07 to 4 bar with no external pressure regulator (for pressure exceeding four bar an external pressure regulator is required)
Sample Flow	100 to 300 mL/min
Sample Temperature	5 to 40°C (41 to 104°F)
Sample Inlet/Outlet Connection	12mm (1/2") male NPT fitting
Drain Connection	10mm (3/8") barb
Power Supply	115 VAC ±10% or 230 VAC ±10%; 50/60 Hz; 20 VA
