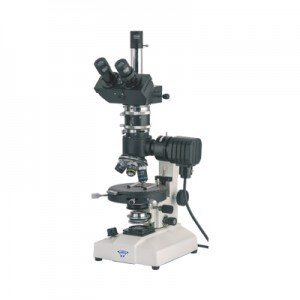

METZER - BINOCULAR RESEARCH ORE MICROSCOPE (METZ-889)

PRODUCT CODE :  (T/L/BOM/MEZ/XXX/001)

* Magnification 40x – 400x.
* Observation Binocular 45˚, 360˚ rotatable, with interpupillary and diopter adjustment.
* Stand A rigid & heavy stand.
* Focusing Coarse and fine focusing by conveniently placed separate knobs 1 div. 0.002 mm.
* Stage Compact ball bearing center able rotating stage 140mm diameter , graduated with vernier , lock and  two specimen clips.
* Illumination Built – in base 6V – 20W Halogen light source with precentered light condenser.
* Condenser Sub stage Abbe filter holder N.A. 1.25
 condenser with Iris diaphragm and swing out filter holder focusable by rack & pinion.
* Nose Piece Quadruple revolving nose piece with positive click stops.
* Incident Illuminator Reflected light incident illuminator consist of polarizing unit slot for filter & 6V – 20W  Intensity control transformer.
* Analyzer Equipped with a Bertrand lens, which can be swung in and out of the microscope tube for  conoscopy observation. Compensator slot at 45˚ accommodating 1/4 & 1/2 wave length retarding plates.
* Polarizer Polarizer rotating and graduated to 360 degree
* Objectives Achromatic P4x, P10x, P40x (SL).
* Eye Pieces Wide field 10x . & Wide field 10x with cross.
