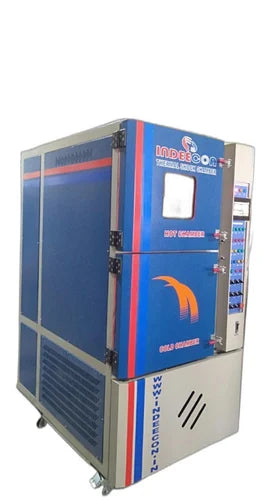

Thermal Shock Chamber

Thermal Shock Chamber

17 sold in last 24 hours

Rs. 0.00

The Thermal Shock Chamber from Prism Test & Measure Pvt. Ltd. is designed to evaluate the performance and durability of materials and components subjected to rapid temperature changes. It simulates extreme environmental conditions where products experience sudden transitions between hot and cold environments.

These chambers are widely used in electronics, automotive, aerospace, defense, and research laboratories to test the resistance of components to thermal stress.

Key Features

• Simulates rapid temperature transitions between hot and cold zones
• Multiple configurations including air-to-air, liquid-to-liquid, and liquid-to-air systems
• PLC control with touchscreen interface for programming test cycles
• High efficiency heating and refrigeration systems
• Fast basket transition time (<10 seconds)
• Durable stainless steel chamber construction
• Optional data logging system for performance monitoring

Technical Specifications

Parameter Specification
Temperature Range −70 °C to 200 °C
Number of Zones 2
Basket Capacity 50 L – 1000 L
Basket Movement Vertical / Horizontal
Basket Transition Time < 10 seconds
Mechanism Motor driven / hydraulic / pneumatic
Construction Inner SS-304, outer powder-coated CRCS
Refrigeration System High-performance refrigeration
Control System PLC with Touchscreen HMI
Safety Devices Overheat protection, circuit breakers
Power Supply Three Phase, 415 V, 50 Hz
