Product Overview

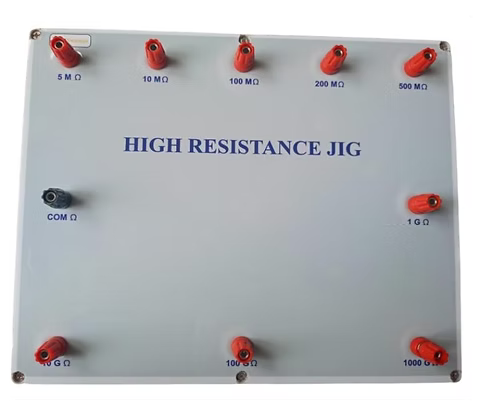

The High Resistance Jig from Prism Test & Measure Pvt. Ltd. is a precision reference device designed for high resistance calibration and insulation resistance testing applications. It provides fixed high resistance values with excellent accuracy and stability, making it suitable for calibration laboratories, electrical testing facilities, research laboratories, and quality assurance departments.

The unit is designed with high insulation construction and reliable terminal connections, ensuring accurate measurements when testing megohm meters, insulation testers, and high resistance measuring instruments.

Key Features

  • Fixed high resistance standards for calibration applications
  • High measurement accuracy and excellent stability
  • Designed for high resistance and insulation testing
  • Output through Ø4 mm safety terminals
  • Suitable for megohm meter and insulation tester verification
  • Robust laboratory grade construction
  • Reliable performance for calibration labs and electrical testing facilities

Technical Specifications

Parameter Specification
Fixed Resistance Values 5 MΩ, 10 MΩ, 100 MΩ, 200 MΩ, 500 MΩ, 1 GΩ, 2 GΩ, 5 GΩ, 7 GΩ, 10 GΩ, 50 GΩ, 100 GΩ
Maximum Test Voltage 1000 V DC / 5000 V DC
Accuracy 5 MΩ to 10 GΩ : ±2%
100 GΩ to 1000 GΩ : ±5%
Operating Temperature 20°C to 25°C
Relative Humidity < 55% RH
Output Terminals Ø 4 mm Safety Terminals
