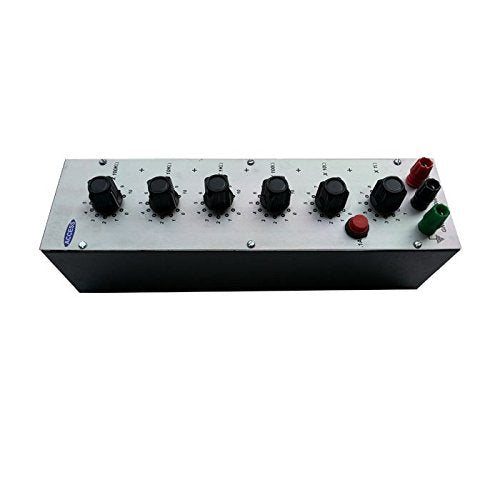

DECADE CAPACITANCE BOX

DECADE CAPACITANCE BOX

18 sold in last 24 hours

Rs. 0.00

The Decade Capacitance Box from Prism Test & Measure Pvt. Ltd. is a precision testing instrument designed to provide accurate and selectable capacitance values for calibration, testing, and circuit development applications. It is widely used in electronics laboratories, calibration labs, educational institutes, and R&D facilities for testing and verifying capacitors, measuring instruments, and electronic circuits.

The capacitance value can be easily selected using rotary decade switches, enabling quick and precise adjustments. Built with high stability capacitors and reliable switching mechanisms, the unit ensures stable performance and dependable measurement results.

Key Features

  • Wide capacitance range suitable for calibration and testing applications
  • Rotary decade switches for quick and accurate capacitance selection
  • High stability capacitors for reliable performance
  • Low loss and stable output characteristics
  • 4 mm safety terminal connections for secure testing
  • Compact and rugged bench-top design
  • Suitable for electronic circuit testing, instrument calibration, and educational experiments

Technical Specifications

Parameter Specification
Capacitance Range 100 pF to 11,111.1 µF
Decade Steps 100 pF, 1 nF, 10 nF, 100 nF, 1 µF, 10 µF, 100 µF, 1000 µF
Accuracy ±2%
Residual Capacitance < 50 pF
Operating Temperature 10°C to 40°C
Storage Temperature 5°C to 70°C
Output Terminals Ø 4 mm Safety Terminals
Dimensions 470 mm (W) × 100 mm (D) × 80 mm (H)
Weight Approx. 2 kg
