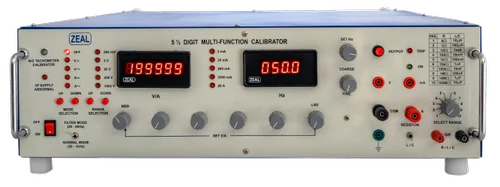

5½ DIGIT MULTI FUNCTION CALIBRATOR

5½ DIGIT MULTI FUNCTION CALIBRATOR

22 sold in last 24 hours

Rs. 0.00

The 5½ Digit Multi-Function Calibrator offered by Prism Test & Measure Pvt. Ltd. is a high-precision instrument designed to generate accurate electrical signals for calibration and testing of measuring instruments. This calibrator provides stable and reliable outputs of AC/DC voltage, AC/DC current, and frequency, making it suitable for calibration laboratories, quality control departments, and industrial testing environments.

With its high-resolution display and microcontroller-based operation, the calibrator ensures accurate signal generation and easy parameter selection. It is widely used for verifying and calibrating digital multimeters, clamp meters, panel meters, and other electrical measuring instruments, ensuring measurement accuracy and compliance with industry standards.

Key Features

  • High-resolution 5½ digit LED display for precise measurement and output setting
  • Generates AC and DC Voltage, AC and DC Current, and Frequency signals
  • Microcontroller-based design for reliable performance and accurate parameter selection
  • Decade switch setting for precise voltage and current adjustment
  • Variable frequency output with pure sine wave signal
  • Separate output terminals for voltage and current outputs
  • Overload and short-circuit protection for safe operation
  • LED indicators for range and parameter selection
  • Stable and highly accurate output suitable for calibration laboratories
  • Robust design for industrial and laboratory applications

Technical Specifications

Parameter Specification
Display 5½ Digit LED Display
Power Supply 230 V AC ±5%, 50 Hz
DC Voltage Range 200 mV, 2 V, 20 V, 200 V, 1000 V
AC Voltage Range 200 mV, 2 V, 20 V, 200 V, 1000 V (45 Hz – 1000 Hz)
DC Current Range 2 mA, 20 mA, 200 mA, 2 A, 10 A
AC Current Range 2 mA, 20 mA, 200 mA, 2 A, 10 A (45 Hz – 1000 Hz)
Frequency Range 45 Hz – 1000 Hz
Accuracy DC Voltage / Current: ±0.10% ±5 digit
AC Voltage / Current: ±0.15% ±15 digit
Frequency Accuracy ±0.1 Hz
Parameter Selection Microcontroller-based selection
Adjustment Method Precision decade switches
Protection Over-voltage and overload protection
Operating Temperature 10 °C to 40 °C
Dimensions Approx. 550 × 600 × 170 mm
Weight Approx. 25–30 kg
