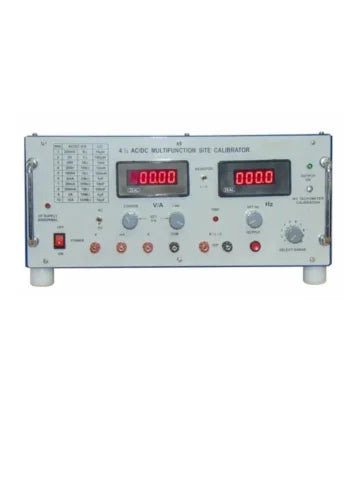

4½ AC/DC MULTI FUNCTION SITE CALIBRATOR

4½ AC/DC MULTI FUNCTION SITE CALIBRATOR

12 sold in last 24 hours

Rs. 0.00

The 4½ AC/DC Multi‑Function Site Calibrator from Prism Test & Measure Pvt. Ltd. is a versatile, precision instrument designed for on-site testing and calibration of electrical and electronic devices. It provides accurate generation and measurement of AC/DC voltage, AC/DC current, resistance, and frequency, making it an essential tool for maintenance engineers, field service personnel, and calibration labs.

Key Features

  • High-resolution 4½ digit LED display for precise readings
  • Measures and generates AC/DC Voltage, AC/DC Current, Resistance, and Frequency
  • Microcontroller-based design ensures reliable performance and accurate parameter selection
  • Decade switch for precise voltage and current adjustment
  • Variable frequency output with pure sine wave signal
  • Separate output terminals for voltage and current
  • Portable and rugged design suitable for field calibration
  • User-friendly interface with clear display and intuitive controls

Technical Specifications

Feature Specification
Model ZMSMFC 4.5
Input Power Supply 230 V AC, ±5 % @ 50 Hz
Input Protection Calibrator protected by I/P OV (Over Voltage) & I/P UV (Under Voltage)
DC Voltage Ranges 200 mV, 2 V, 20 V, 200 V, 1000 V
AC Voltage Ranges (45 Hz to 1 kHz) 200 mV, 2 V, 20 V, 200 V, 1000 V
DC Current Ranges 2 mA, 20 mA, 200 mA, 2 A, 10 A
AC Current Ranges (45 Hz to 1 kHz) 2 mA, 20 mA, 200 mA, 2 A, 10 A
Frequency 45 Hz to 1 kHz
Fixed Resistance 1 Ω, 10 Ω, 100 Ω, 1 kΩ, 10 kΩ, 100 kΩ, 1 MΩ, 10 MΩ, 100 MΩ
Fixed Inductance 10 µH, 100 µH, 1 mH, 10 mH, 100 mH
Fixed Capacitance 1 nF, 10 nF, 100 nF, 1 µF, 10 µF
RPM (Non-Contact Type) 60,000 RPM
Display 4½ Digit 7-segment red LED for Voltage & Current
4 Digit 7-segment red LED for Frequency
Accuracy @ 15 °C to 28 °C, RH < 75 % AC Voltage: 0.3 % ± 10 Dgt
DC Voltage: 0.2 % ± 5 Dgt
AC Current: 0.3 % ± 10 Dgt
DC Current: 0.2 % ± 5 Dgt
Resistance: ±0.5 %
Capacitance: ±5 %
Inductance: ±5 %
RPM: ±0.1 %, ±5 digit
Selection of AC/DC Parameters Toggle switch
Selection of Resistor / L / C Toggle switch
Selection of Ranges Rotary selector switch
