Description

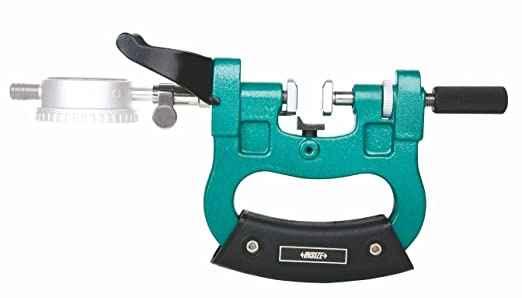

The INSIZE 2186-125 Dial Snap Gauge is a precision comparative measuring tool designed for quick and accurate checking of external dimensions—including diameters, thicknesses, and steps—within the 100–125 mm range. With a clear dial indicator and sturdy construction, it’s ideal for quality control, workshop, and manufacturing inspection tasks.
KEY FEATURES:
• Measuring range: 100 – 125 mm
• Clear, easy-to-read dial indicator
• Precision-ground anvils for accurate measurement
• Strong and durable frame for consistent performance
• Smooth and reliable comparative measurement action
• User-friendly design
APPLICATIONS:
• External diameter measurement of shafts, rods, and cylindrical parts
• Thickness and step inspection of machined components
• Comparative checking in quality control
• Machine shop and fabrication measurement tasks
• Automotive and industrial dimensional verification
Additional Information
Range: 100-125mm
Parallelism of measuring faces: 6µm
A: 144mm
B: 42-70mm
C: 75mm
Left anvil retracting stroke: 2mm
Measuring force: 6-8N
Flatness of anvil: 1.5µm
Repeatability: 1µm
Carbide measuring faces for anvils
Front edges of anvils are chamfered for easy workpiece insertion
Optional accessory:
- Dial indicators and digital indicators (reading 0.0001mm or 0.01mm)
