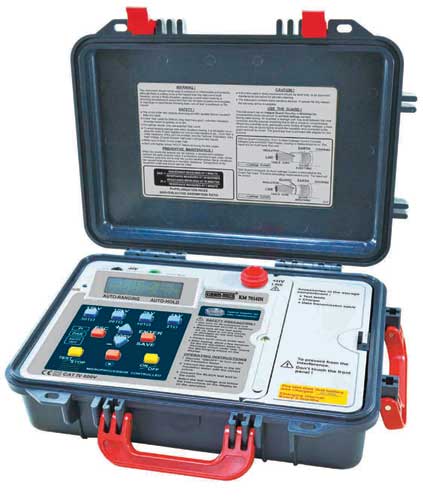

Description
• AC / DC Voltage : 600V.
• PI & DAR indication.
• Auto-ranging on all insulation ranges.
• 2 Lines X 16 Characters large LCD Backlight display.
• Bargraph indicates test Voltage, rise & decay can be observed.
• Visual & audible warning if external voltage is present. ( 30Vac or 30Vdc)
• Auto-hold function to freeze the reading.
• Overload Protection
• Adjustment for testing time (duration) :1 ~ 30 minutes
• Auto-off.
• Calendar
• Optical USB to RS-232 data transmission.
• 200 measurement results can be saved in the memory & recalled on the display.
• Safety Standard : EN61010-1 CAT IV 600V EN61010-2-030; EN61326-1
Additional Information
Features
• Microprocessor controlled Menu Driven.
• Test Insulation Resistance upto 30T Ω (30000G Ω)
• Test Insulation Voltage upto 15kV.
• Short circuit current upto 5mA.
• Measuring 30 Insulation Test Voltage Ranges:
500V, 1kV, 1.5kV, 2kV, 2.5kV, 3kV, 3.5kV, 4kV, 4.5kV, 5kV, 5.5kV,
6kV, 6.5kV, 7kV, 7.5kV, 8kV, 8.5kV, 9kV, 9.5kV, 10kV, 10.5kV,
11kV, 11.5kV, 12kV, 12.5kV, 13kV, 13.5kV, 14kV, 14.5kV, 15kV.
• AC / DC Voltage : 600V.
• PI & DAR indication.
• Auto-ranging on all insulation ranges.
• 2 Lines X 16 Characters large LCD Backlight display.
• Bargraph indicates test Voltage, rise and decay can be observed.
