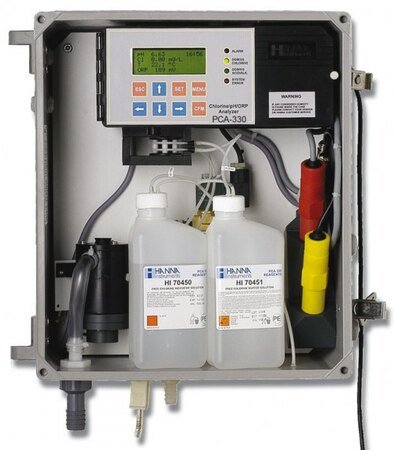

HANNA - Chlorine Ph Orp And Temperature Analyzer (PCA330) +Free Calibration Certificate

HANNA - Chlorine Ph Orp And Temperature Analyzer (PCA330) +Free Calibration Certificate

19 sold in last 24 hours

Rs. 0.00



Brand HANNA
Model PCA330
pH Range (PCA320, PCA330 and PCA340): 0.00 to 14.00 pH
pH Resolution (PCA320, PCA330 and PCA340): 0.01 pH
pH Accuracy (PCA320, PCA330 and PCA340): ±0.05 pH
pH Calibration one or two point or inline calibration
pH Dosing Relay ON/OFF or proportional, relay or 4-20mA output
pH Dosing Set Point selectable from 0.10 to 2.00 pH
pH Hysteresis Band selectable from 0.05 to 2.00 pH
pH Sampling Rate adjustable from 3 to 120 seconds
ORP
ORP Range (PCA330): 0 to 2000 mV
ORP Resolution (PCA330): 1 mV
ORP Accuracy (PCA330): ±1 mV
Temperature Range (PCA320, PCA330 and PCA340): 5.0 to 75.0 °C (41.0 to 167.0 °F)
Temperature Resolution (PCA320, PCA330 and PCA340): 0.1 °C (0.1 °F)
Temperature Accuracy (PCA320, PCA330 and PCA340): ± 0.5 °C (± 1.0 °F)
Chlorine
Total Chlorine Range 0.00 to 5.00 mg/L (ppm)
Total Chlorine Resolution 0.01 mg/L (ppm)
Total Chlorine Accuracy ± 8% or ±0.05 mg/L whichever is greater
Chlorine Calibration one point
Chlorine Sampling Rate adjustable from 3 to 90 minutes
Chlorine Dosing Relay proportional relay or 4-20 mA output
Chlorine Dosing Set Point selectable from 0.1 to 5 mg/L (ppm)
Process Control Meter
Connectivity RS485, galvanic separated
Logging Memory 3500 log records
Baud Rate 1200; 2400; 4800; 9600 bps
Enclosure NEMA-4X standard, molded fiberglass polyester with transparent Lexan window
Inlet Sample Pressure 0.07 to 4 bar with no external pressure regulator (for pressure exceeding four bar an external pressure regulator is required)
Sample Flow Rate 100 to 300 mL/min
Sample Temperature 5 to 40°C (41 to 104°F)
Sample Inlet/Outlet Connection 12mm (1/2”) male NPT fitting
Drain Connection 10mm (3/8”) barb
Alarm Relay SPDT contact with 5A, 230V resistive load
Dosing Relay SPDT contact with 5A, 230V resistive load
Recorder Output 0-10 mV, 0-100 mV, 0-1 V, 4-20 mA, 0-20 mA (PCA310, PCA320, PCA330)
4-20 mA, 0-20 mA (PCA340)
Display character LCD 4 lines x 20 characters (languages: English, Italian, Portuguese, Spanish)
Power Supply 115 VAC ±10%; 50/60 Hz; 20 VA
Dimensions 318 x 267 x 159 mm (12.5 x 10.5 x 6.25’’)
