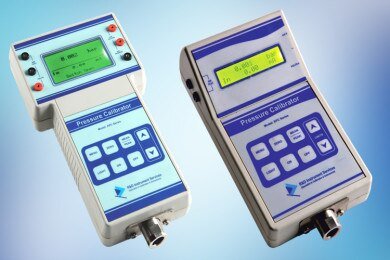

Maxima- Pressure calibrator kit (0 TO 30 V) (EPCK 2/10/20/40)

PRODUCT CODE : T/E/PRC/MAX/030/002

*Features

*MEASUREMENTS: Electrical measurements of mA & Volts . Peak pressure measurements (High & Low peak)

*PRESSURE SWITCH TEST FACILITY: Opening and closing pressures are easily identified by display hold while opening and closing contact

*DISPLAY: Large backlit alpha numeric display with 2 lines (one line Pressure and second line for electrical measurement) . ‘Auto OFF’ function for longer battery life

*KEYPAD: Feather Touch keypad for easy operation . Dedicated ZERO key for Zeroing before test

*PUMP: Pneumatic hand pump for Pressure & Vacuum.

*Over Pressure Alarm : 20% of Full Scale

*Pressure Media : Compatible to 316 Stainless Steel

*Current Terminal Input Protection : Fuse: 100mA / 250V

*Display : Alpha Numeric

*Display Backlight : LED backlight

*Power Supply : Li-ion Rechargeable Battery

*Low Battery Indicator : Yes

*Auto Power Off : 15 minutes

*Battery Backup : 20 hours

*Pressure Connection : 1/4" BSP Female

*Operating Temperature : 10 to 50°C

*Instrument Casing : ABS Plastic

*Instrument Dimensions : 200 mm x 110 mm x 60 / 35 mm (LxWxD)

*Instrument Weight : 550 gms
